Mounts / Carriers

Outline

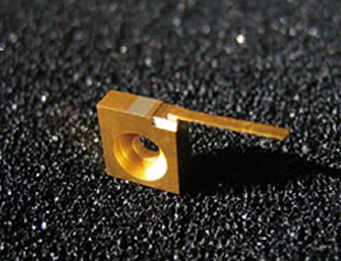

Mounts / Carriers   Any type of carriers from C-mount to full-customized carriers can be manufactured according to the customers’ requirements. Our “ Cross-edge ” microprocessing including cutting, plating, vapor deposition, and bonding, gives you a one-stop solution.



Features

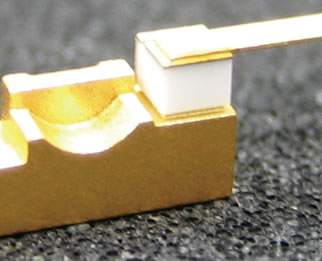

Mounts / Carriers   Mounts / Carriers

Standard dimensions

Materials
Body Cu(OFHC)/CuW10
Lead Kv
Ceramic Al203(92-96%)
Note: OFHC Oxygen-free high thermal conductivity

Dimension/Tolerance
Length upon request
(Refer to A to L in the right figure)
Width
Thickness
Surface roughness Ra<0.4
Burr 5μm以下
Edge Radius ①< 10μm
②< 50μm
③< 80μm

Metallization
All surface Ni 1-5μm/Au 0.1-0.3μm

Options
AuSn vapor deposition
Diamond turning process (only for Cu type)

Note: These are standard specifications.
In case you have any request other than the above, please feel free to contact us.

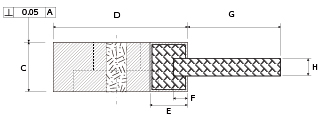

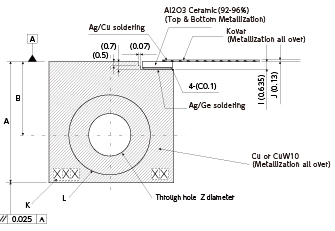

Dimensions image(unit:mm)
dimensions

dimensions



End user market / Applications

Industrial laser
・ Laser equipment for welding, cutting, marking,
surface treatment(e.g. annealing), etc
・ Medical laser equipment for ophthalmology and epilation, and endoscopes,etc


Optical communication
・ Transmitters, Optical transceivers, Optical amplifiers (for pumping),etc

Digital equipment
・ Laser printers, Digital multifunction-printers,etc
